Scratch and Dent - 60-in Tine Bucket Attachment Fits John Deere Loaders - Frame Only - FINAL SALE

* Scratch and Dent items are not eligible for returns or warranty claims. *

* Scratch and Dent Deal - item may have cosmetic damage and/or missing hardware *

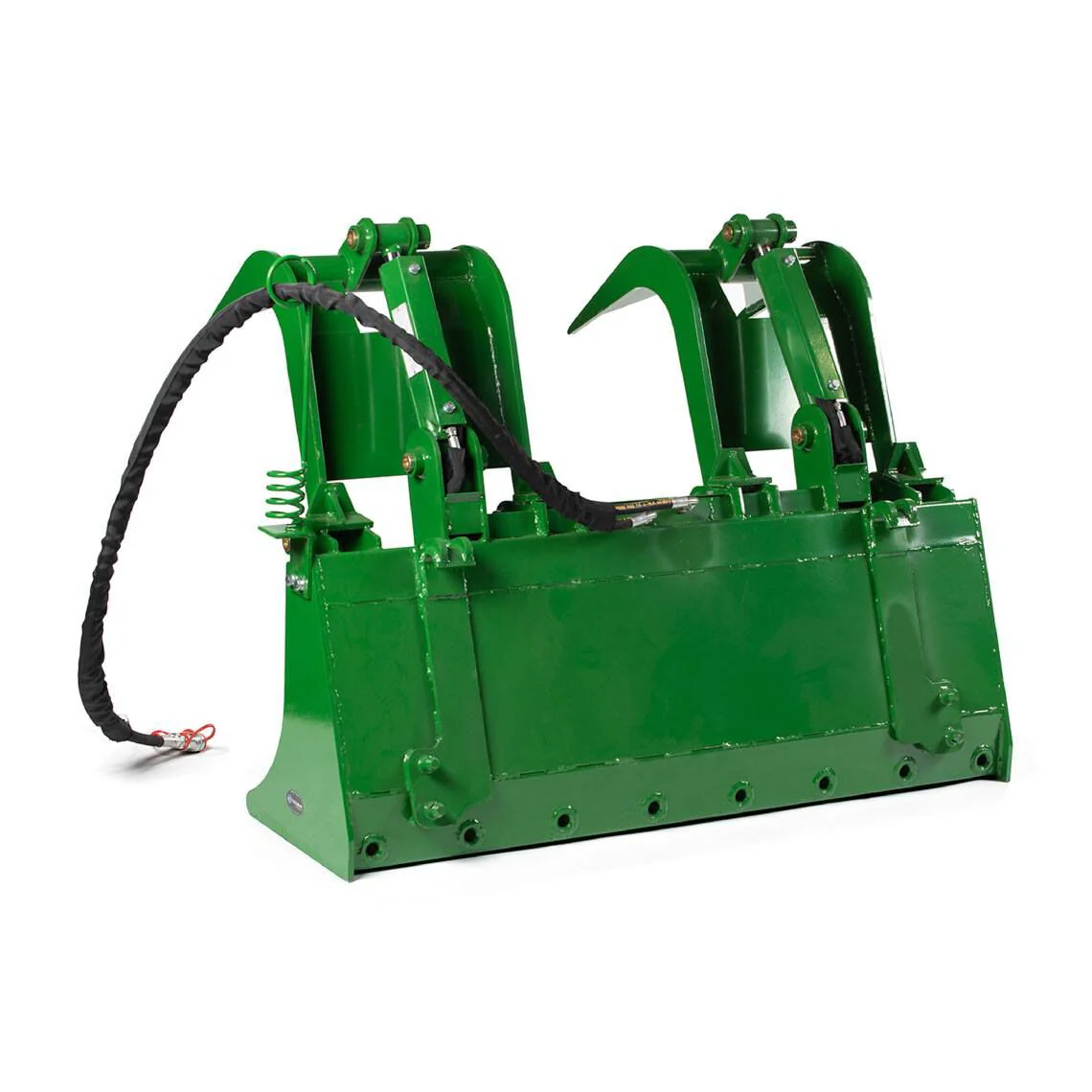

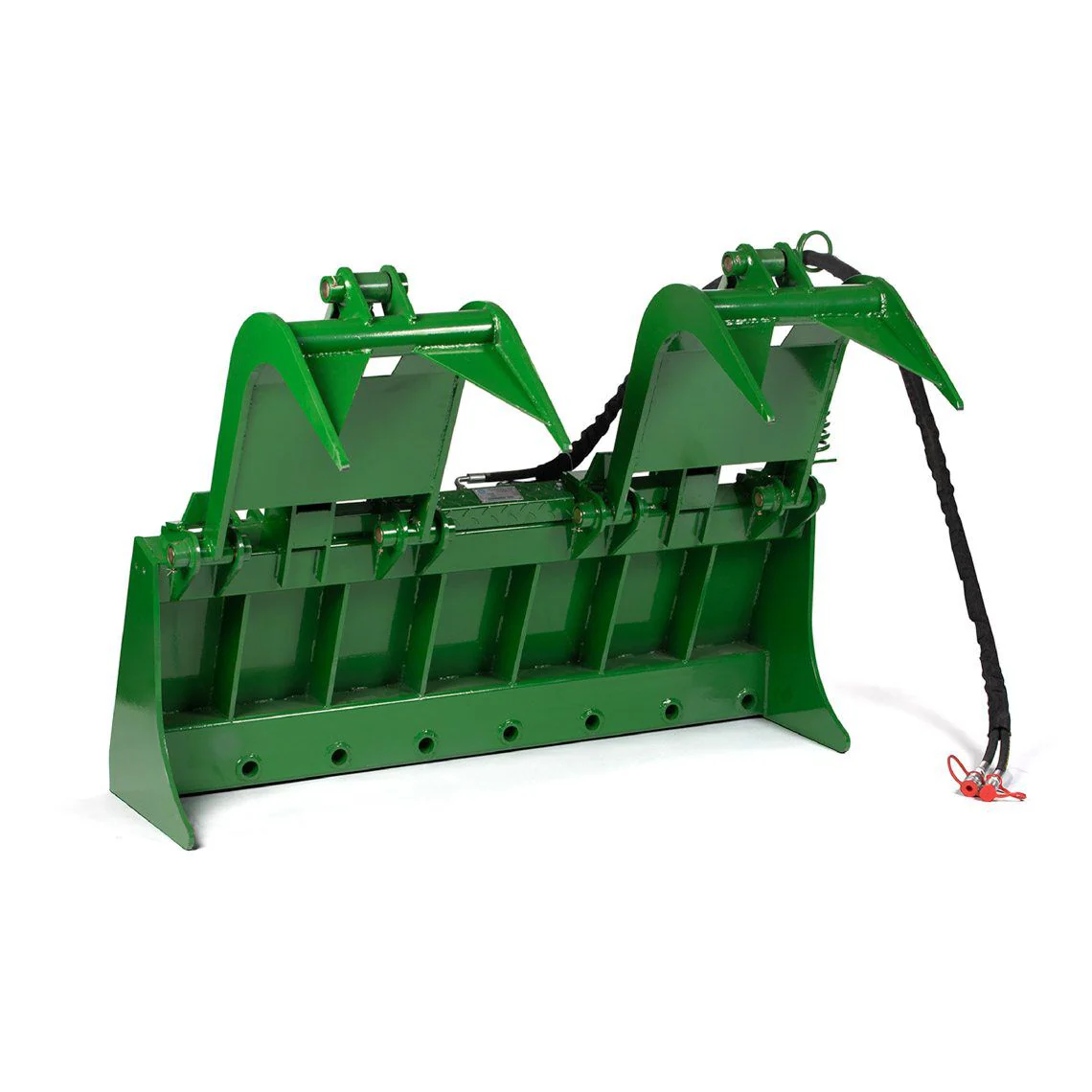

The 5 Foot Tine Bucket Attachment by Titan Attachments, also called a Manure Fork or Silage Fork, features two grapples with 38-inch openings and your option of four Hay Bale Spear lengths. This versatile grapple rake design is compatible with John Deere loaders featuring a hook and pin connection. The implement includes a twin 3,000 PSI cylinder, which guarantees serious lifting power. For your convenience, we have included greaseable pins, bushings, hoses, and couplers. The Tine Bucket Grapple Rake is an excellent landscaping tool for digging out roots to break up silage and scraping up the barn floor.

NOTE: When you order this Tine Bucket, you will need to provide your phone number so the trucking and shipping company can schedule delivery.

USE FOR TRANSPORTING HAY BALES: Hay bales can be challenging to move because of their heavyweight and odd shape. Fortunately, our silage rake comes optional with eight hale bale spears in four various sizes, so it will accurately and precisely stab your hay bales. Additionally, the grapple rake can help you collect brush and loose hay, making your farming tasks easier.

OPTIONAL REMOVABLE HAY BALE SPEARS: The spears are forged and tempered for maximum strength. Each spear is painted red, stamped with the United Bale Spear logo, and includes our trademarked blue nut. The included C1 sleeve is designed specifically for the Conus I Spear to provide a tight fit with no play.

HOOK AND PIN CONNECTION: This grapple bucket fits John Deere tractors equipped with the hook and pin carrier. Top pin set fits H120, D120, 210, 200x, 200cx, 300cx, 300x, 305, 400x, 400cx, 410, 419, 420, 430, 440, and 460 series loaders. The bottom pin set fits 500, 510, 520, 521, 540, 541, and 542 series Ag loaders.

TWIN 3,000 PSI CYLINDER: To help your tractor operate smoothly, this attachment utilizes a twin 3,000 PSI cylinder. Its convenient cylinder assists in providing powerful lifting capability, so you can move silage, brush, caked materials, hay bales, and more. Clear out your land or barn using this strong Tine Bucket Grapple Rake.

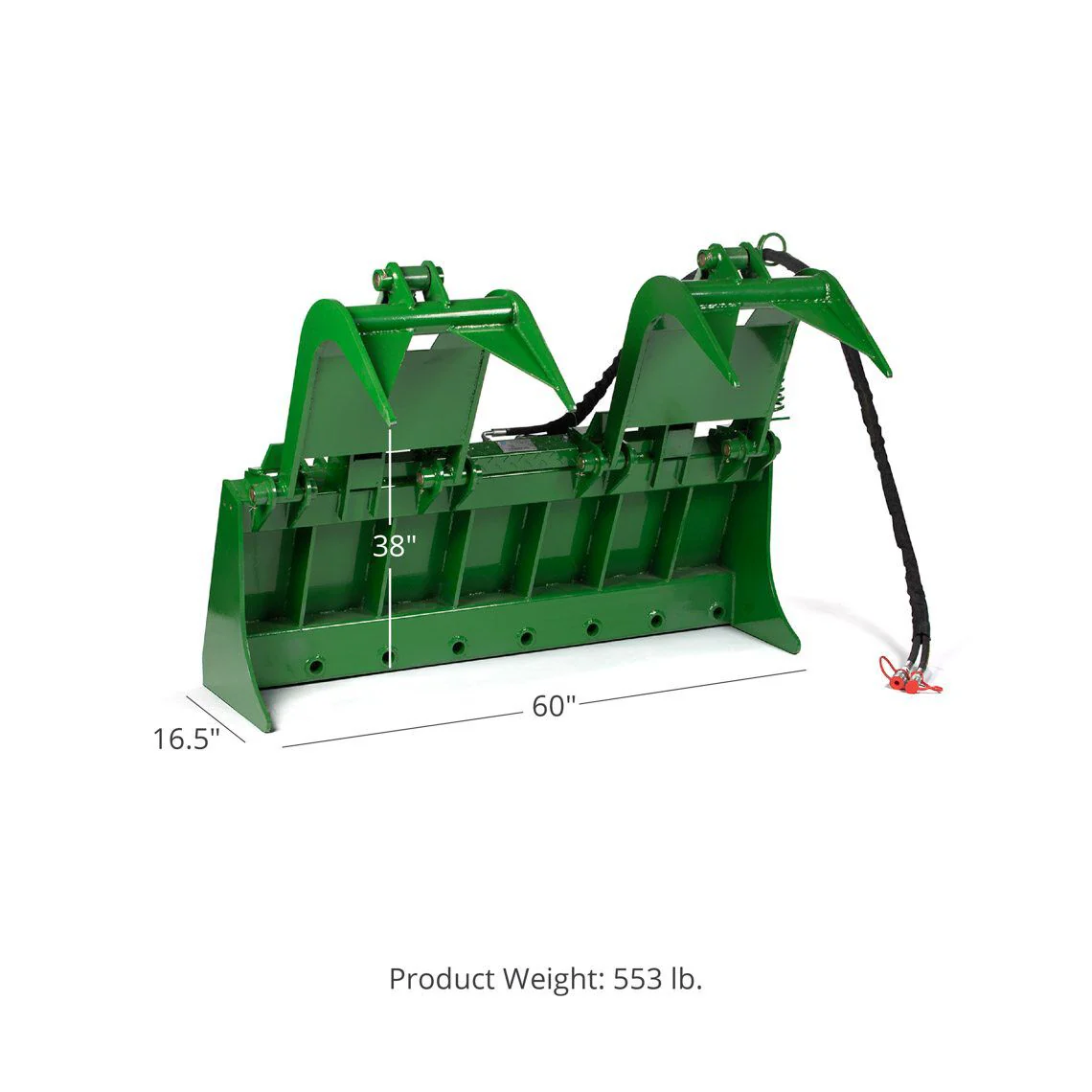

DIMENSIONS: The 60-inch Tine Bucket Attachment structure is built with a 0.5-inch side thickness that extends 16.5-inches long. The single grapple extends 38-inches high (fully open) and features a 0.375-inch tooth thickness. The implement weighs 553-pounds.
